CLIENT: Società Idroelettrica Tornalla Srl
POWER: kVA 3600
YEAR: 2009/2011

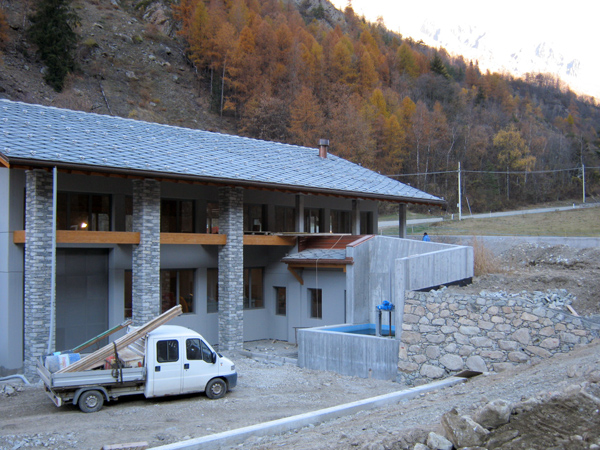

The “Prelé” power station is situated in the village of the same name in the municipality of Oyace. Works began in 2009 and were completed in 2011.

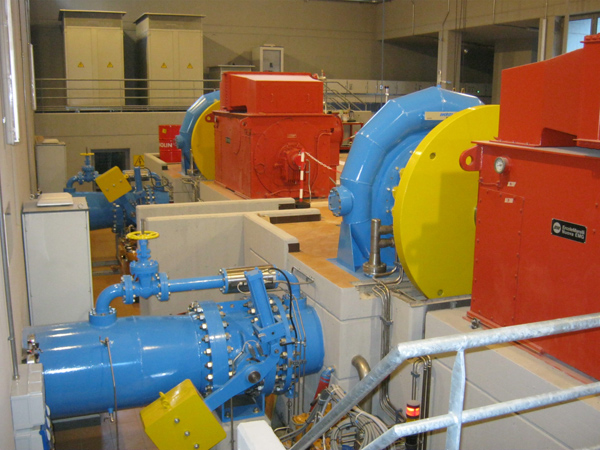

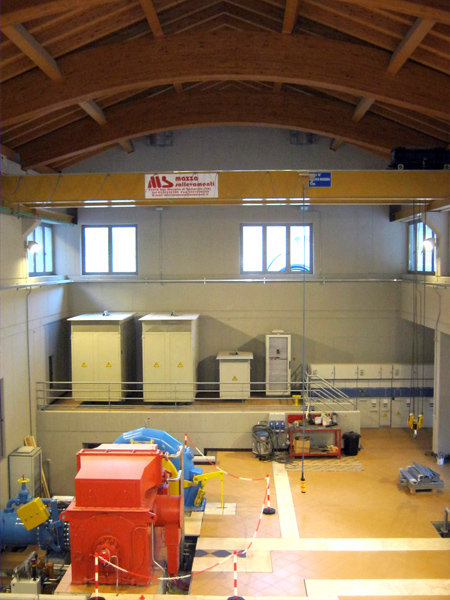

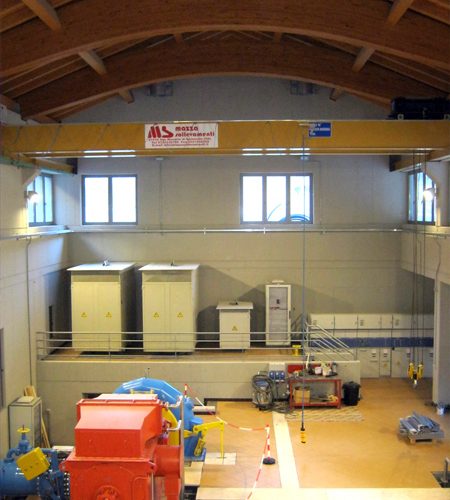

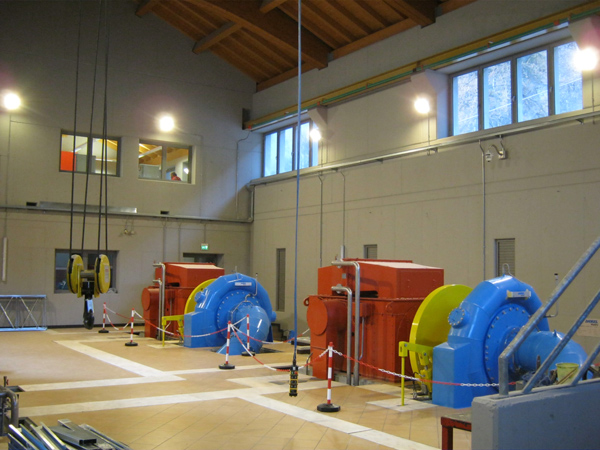

The power station comprises two synchronous generator units driven by Francis turbines, exploiting a head of approximately 140 metres. Two units with a total nominal power of 3600 kVA provide 3,000 kW of maximum production in the summer.

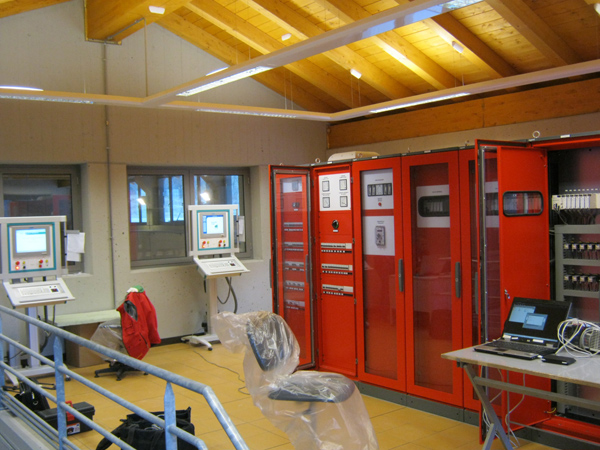

The plant operation is automated, is not manned, and is controlled by two PLCs (programmable logic controllers) which monitor activities and restart the power station in the event of a stoppage. Information relating to the station’s electrical and mechanical parameters is sent to the Introd supervision centre.

The water is captured in Vernoce, through structures which respect the surrounding environment. The water reaches the power station through a penstock which runs underground for an initial stretch of 500 m, and then continues in a trench.

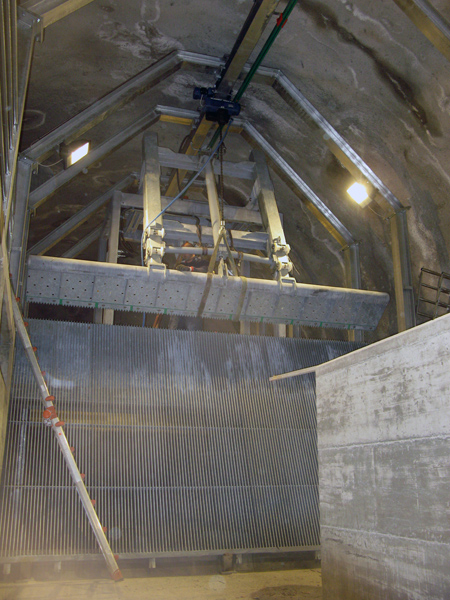

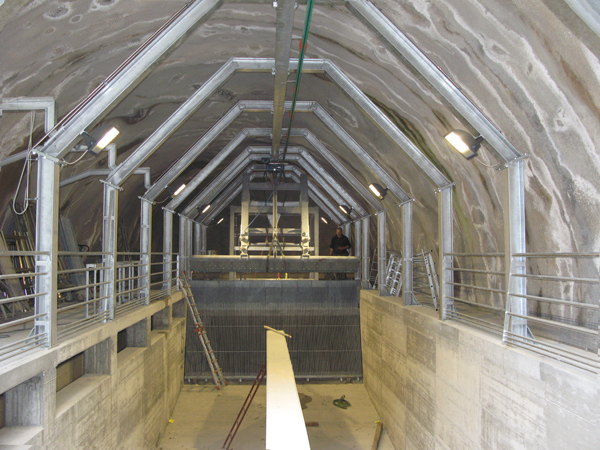

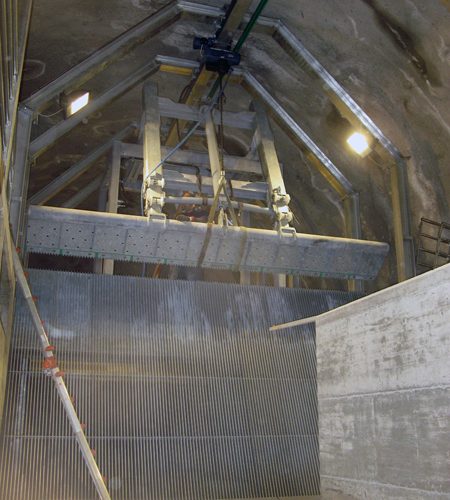

The intake structure lies completely underground.
